產品參數
| 序號 | 型號 | 線速度(Vc) | 每齒進給(F） | 單邊切深(Ae) |
| 1 | GBA32R050 KP300 | 50-150 | 0.03-0.1 | 0.02-0.1 |
| 2 | GBA32R060 KP300 | 50-150 | 0.03-0.1 | 0.02-0.15 |
| 3 | GBA32R070 KP300 | 50-150 | 0.03-0.1 | 0.02-0.15 |
| 4 | GBA32R075 KP300 | 50-150 | 0.03-0.1 | 0.02-0.15 |
| 5 | GBA32R080 KP300 | 50-150 | 0.03-0.1 | 0.02-0.15 |
| 6 | GBA32R100 KP300 | 50-150 | 0.03-0.1 | 0.05-0.2 |
| 7 | GBA32R110 KP300 | 50-150 | 0.03-0.1 | 0.05-0.2 |
| 8 | GBA32R120 KP300 | 50-150 | 0.03-0.1 | 0.05-0.2 |
| 9 | GBA32R125 KP300 | 50-150 | 0.03-0.1 | 0.05-0.2 |
| 10 | GBA32R130 KP300 | 50-150 | 0.03-0.1 | 0.05-0.2 |
| 11 | GBA32R140 KP300 | 50-150 | 0.03-0.1 | 0.05-0.2 |
| 12 | GBA32R150 KP300 | 50-150 | 0.03-0.1 | 0.1-0.3 |
| 13 | GBA32R175 KP300 | 50-150 | 0.03-0.1 | 0.1-0.3 |
| 14 | GBA32R180 KP300 | 50-150 | 0.03-0.1 | 0.1-0.3 |
| 15 | GBA32R200 KP300 | 50-150 | 0.03-0.1 | 0.1-0.4 |
| 16 | GBA32R200-L3.7 KP300 | 50-150 | 0.03-0.1 | 0.1-0.4 |
| 17 | GBA32R230 KP300 | 50-150 | 0.03-0.1 | 0.1-0.4 |
| 18 | GBA32R240 KP300 | 50-150 | 0.03-0.1 | 0.1-0.4 |
| 19 | GBA32R250 KP300 | 50-150 | 0.03-0.1 | 0.1-0.5 |
| 20 | GBA32R280 KP300 | 50-150 | 0.03-0.1 | 0.1-0.5 |
| 21 | GBA32R300 KP300 | 50-150 | 0.03-0.1 | 0.1-0.6 |

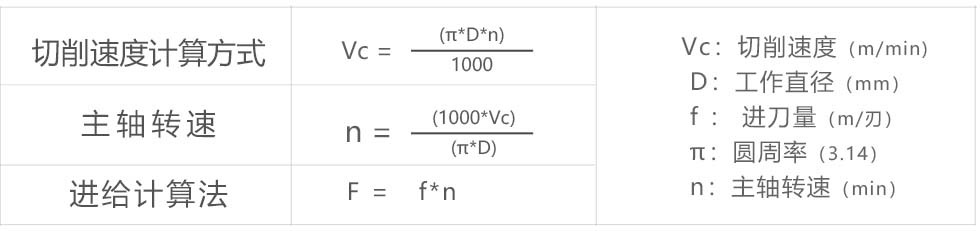

計算方式
溫馨提示：因裝夾方式、機床狀態、冷卻效果等差異，此參數僅供參考。
